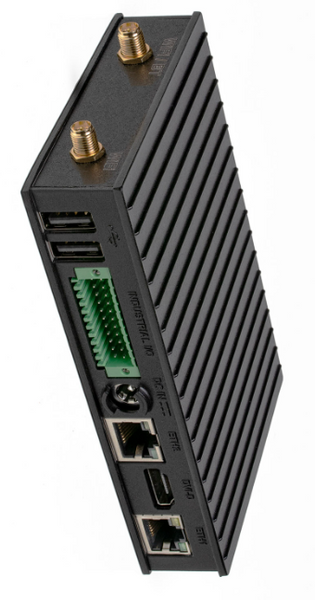

nodeG5 | CAN Bus IIoT Gateway

nodeG5 | CAN Bus IIoT Gateway

Prices in USD

$288.00

Deploy on-the-ground processing, analytics, downstream control or ML inferencing with CAN Bus J1939/OBD2 data collection to improve the reaction speed, cost and reliability of your industrial intelligence infrastructure.



  • Integrated MQTT cloud clients enable you to quickly set up a secure connection to your Server or an AWS, Azure & Ubidots account.
  • The board is optimised for running Docker containers, Python scripts & TensorFlow machine learning applications.
  • Options to employ iterative polling or REST API functions to retrieve equipment data in JSON or XML formats.
  • Distinct reporting modes for real time, queued or processed data (i.e. as average values) by just using web/ JSON config.
  • Add on site controls (i.e. touchscreen, speaker or camera) using the HDMI or USB ports provided.
  • And more...

(See Full Product Details)


Ex-warehouse stock typical lead time: 2 weeks worldwide


 Processing Core & RAM
  • NXP i.MX8M Plus Quad, quad core ARM cortex-A53, 1.8GHz
  • NXP AI/ML Neural Processing Unit, up to 2.3 TOPS (depends on user selection)
  • Google Coral TPU ML Accelerator, up to 4 TOPS (depends on user selection)
  • 2GB - 4GB RAM (depends on user selection)
Supported Industrial Protocols
  • CAN Bus J1939 | OBD2 (ISO 15765-4)
  • Modbus TCP/RTU (depends on user selection)
  • Serial RS485 (depends on user selection)
  • OPC UA
  • Bluetooth (depends on user selection)
  • WIFI (depends on user selection)
Cloud Clients
  • Integrated AWS IoT Core & Sitewise
  • Integrated Azure IoT Hub & IoT Central
  • Integrated Ubidots client
  • Integrated MQTT with TLS security client
Networking
  • LAN with Ethernet
I/O & Ports
  • 2 x LAN 1000Mbps Ethernet port
  • 2 x USB2.0; 1 x USB3.0 (type A)
  • 1 x HDMI port
  • CAN Bus ports (quantity dependent on selected option)
  • Serial RS485 port (depends on user selection)
Physical
  • 132mm x 84mm x 25mm
  • Rugged Aluminium Enclosure
  • Includes Mounting Plate or DIN rail
Power
  • 9~30 VDC Power Supply Requirement
Operating Temperature
  • 0*C~60*C Operating Temperatures
Certifications
  • FCC
  • CE
  • UKCA
  • RCM
Product Warranty
  • 5 Year Manufacturer Warranty



BOX INCLUDES

  • 1 x nodeG5 edge CAN Bus IIoT gateway
  • 1 x Industrial I/O Connector
  • 1 x Power Adapter
  • 1 x Mounting Plate
  • 1 x Bluetooth & WiFi Antenna (depends on user selection)



CURRENCY AND SHIPPING


CURRENCY
  • Prices are shown ex warehouse in USD.

SHIPPING

  • Samples ship out within 2 business days.
  • We will issue you a Tracking Number to allow you to follow your order.
  • We do not ship to regions not covered by FEDEX or UPS.
  • We do not ship to PO Boxes.
